適用設施: 衛星電視、 數位電視
●產品說明:

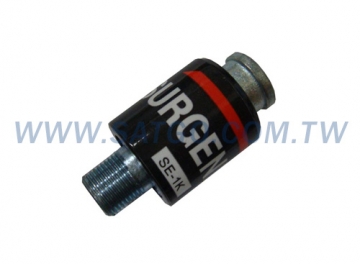

SE-1K避雷小幫手是一個能防止天線在雷殛時or有線電視突然產生脈衝時，而致使電視損壞的產品，且安裝後不會影響訊號損失。
此產品風行歐美，安裝簡易，經得起考驗，雷殛之後仍可使用，絕對是超值好品。
適用於:大樓、住家。
頻率:40-2150MHz
重量: 24.5公克
尺寸: 38.2長
直徑: 19.3
SURGE PROTECTOR
The SE-1K provides a cost effective means of protection equipment from surge voltage damage.
The device is designed to protect the coax connected equipment from sudden suges or lightning strikes. This offers additional lightning strikes. This offers additional protection to already grounded equipment.
CATV Converters and Decoders
LAN’s
VCR’s
Satellite Receivers
Projection Tvs
Video Cameras
|
Specifications:
|
Maximum surge current
|
Maximum surge voltage
|
Surge Life
|
|
0.0000001 seconds
|
5000Amps. (8microsec x 20 Microsec test pules)
|
Multiply 5000 times ohms of coax loop
|
200 surges of 500Amps (10microsec x 1000 microsec test pulse)
|
|
Normal resistance across coax
|
Surge resistance
|
Insertion Loss
|
Connectors
|
|
10,000 Megohms
|
Approx. 0 ohms
|
Less than 0.2 dB
Video-1500MHz
|
One F Male, one F Female
|
|
Power passing capability
|
Return Loss (75 ohm)
|
Dimensions
|
Packing
|
|
50 Volts DC or AC peak-to-peak,
36 Volts RMS, 10 Amps
|
16dB Video to 500MHz
14dB 500 to 1500MHz
|
1,385” L X 0.815” DIA
|
100 to a carton
500 to a master carton
|
| |
|
|
|
|
|
|
|
|
