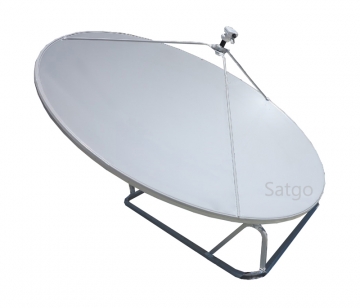

PF1801G

180cm prime focus dish

Specification

Type

Prime Focus

Operture Diameter

180 cm

Panel

1

Reception Frequency

10.70 - 12.75 GHz / 3.40 - 4.20 GHz

Ku-Band @ 12.75 GHz

46.45 dB

C-Band @ 4.20 GHz

36.52 dB

Focus Length

657.4 mm

Effiniency

75% min

Azimuth

0° ~ 360°

Elevation

0° ~ 90°

F/D Ratio

0.38

Material

Steel / Galvanized Steel

Finish

Polyester Powder Coating

Available Color

Gray

Suitable Pole Diameter

///

Relative Humidity

0% ~ 100%

Operating Temperature

(-40°C ~ 60°C)
