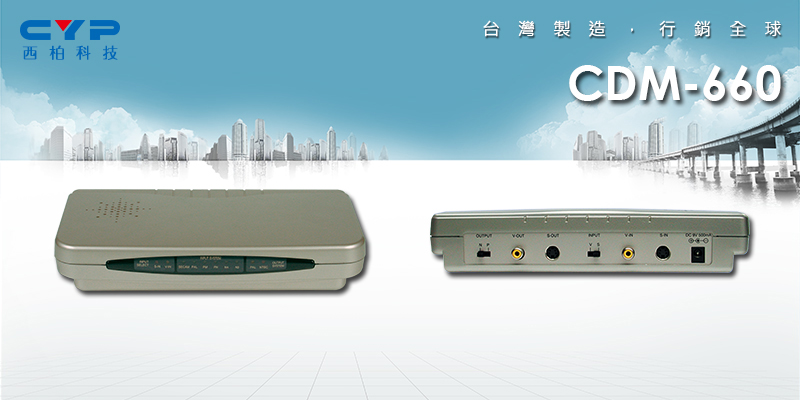

台灣西柏科技製造 CDM-660多系統影像轉換器
◆ 內建色階
◆ 自動偵測輸入源
◆ 電視訊號源輸入NTSC, N4, PAL, PAL M, PAL N, SECAM 數位轉成 NTSC, PAL系統
◆ 數位線條 (525 625條) 與領域 (60 輸入 50 領域) 轉換
◆ 6M bit 領域記憶體
產品簡介
NTSC 3.58, NTSC 4.43, PAL, PAL M, PAL N, SECAM 系統轉 NTSC 3.58, PAL。
- Auto detection of input signal
- Digital line and field conversion
- Built-in Colour bar generator shows when no input signal is present
- Suitable for small screens
|

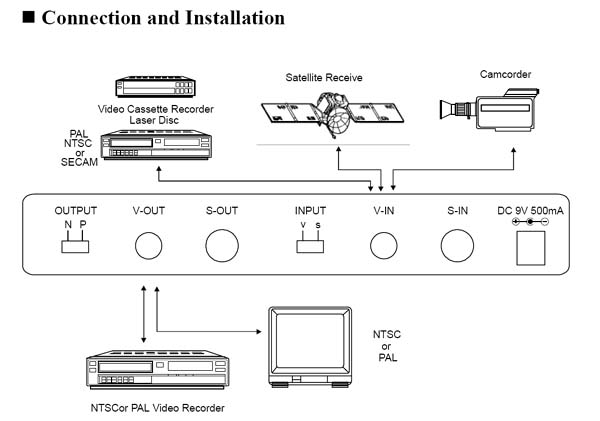

Inputs
|
1x RCA [1x Composite]
1x S-video plug [1x S-video]
|
|
Outputs
|
1x RCA [1x Composite]
1x S-video plug [1x S-video]
|
|
PSU:
|
5V/2.6A
|
|
Dimensions
|
235mm [W] x 140mm [D] x 45mm [H]
|
|
Net Weight
|
400g
|
|
Gross Weight
|
800g
|
|
